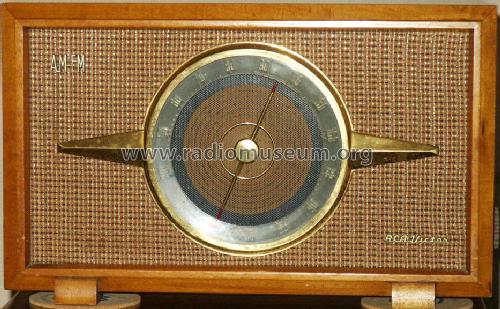

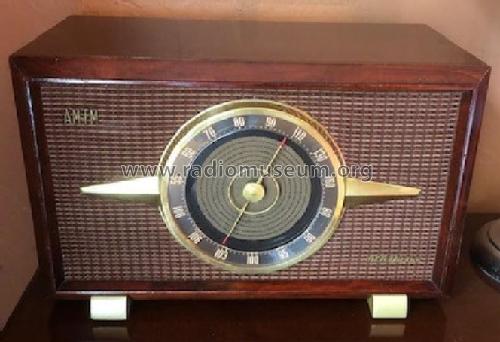

6-RF-9 The "Livingston" Ch= RC-1129C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163567
-
- alternative name: RCA Manufacturing || Victor Talking Machine
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
RECONSTRUCTED LABEL
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6-RF-9 The "Livingston" Ch= RC-1129C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17 x 10.5 x 9 inch / 432 x 267 x 229 mm
- Notes
- Cabinet available in Mahogany, Oak or Maple.
- Net weight (2.2 lb = 1 kg)
- 19.5 lb (19 lb 8 oz) / 8.853 kg
- Mentioned in
- -- Other type before this -same/similar characteristics - see exchange.
- Author
- Model page created by Chad Comstock. See "Data change" for further contributors.
