6T54 "Kent" Ch= KCS47
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950/1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 156203
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Picture from RCA databook
Pic. just as type proof!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6CB6 6J6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6CB6 6AU6 6CB6 6AL5 12AU7 12AU7 6J5 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16GP4 or 16GP4A or 16GP4B or 16GP4C
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 115V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 3.5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6T54 "Kent" Ch= KCS47 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 21.5 x 37.875 x 20 inch / 546 x 962 x 508 mm
- Notes
-
The RCA 6T54 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4, 16GP4A, 16GP4B or 16GP4C. Cabinet color is Mahogany. Has optional stand, with model number 6CB1.
- Net weight (2.2 lb = 1 kg)
- 106 lb (106 lb 0 oz) / 48.124 kg
- Literature/Schematics (1)

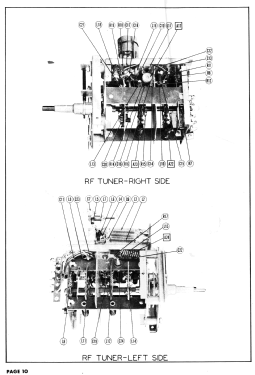

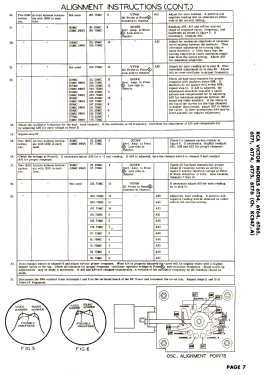

- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 367-400)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 113, Folder 7 dated 11-50)
