6Q8 Ch= RC-414B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53702
-
- alternative name: RCA Manufacturing || Victor Talking Machine

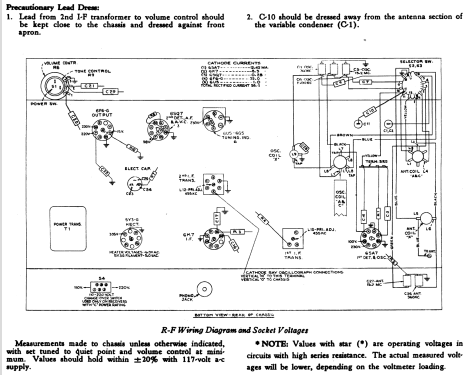

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6Q8 Ch= RC-414B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14.125 x 12.125 x 9 inch / 359 x 308 x 229 mm
- Notes
- This model has 3 power supply ratings:
Rating A...105-125V, 50-60 Cycles
Rating B...105-125V, 25 Cycles
Rating C...105-130;200-250V, 50-60 Cycles
- Net weight (2.2 lb = 1 kg)
- 17.5 lb (17 lb 8 oz) / 7.945 kg
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition

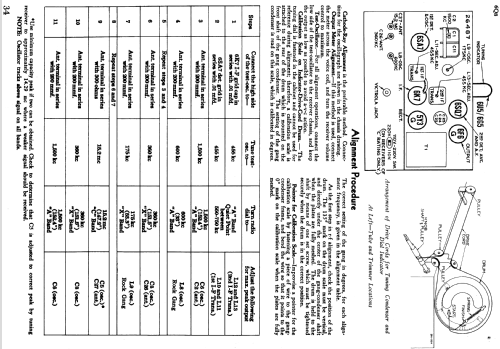

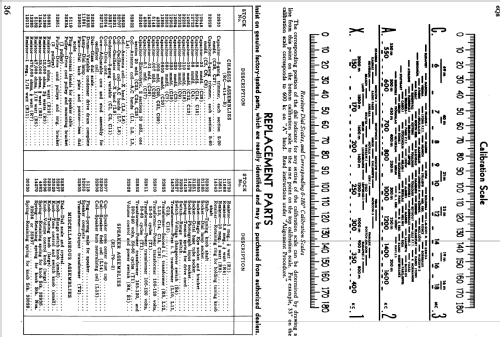

- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
