• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18884

• • alternative name: RCA Manufacturing || Victor Talking Machine

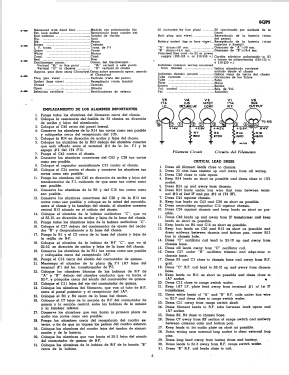

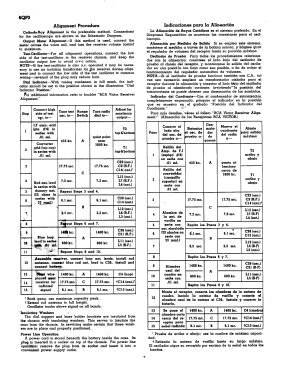

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1A7GT 1T4 1U5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / AC/DC 105-125; 210-250 / 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.15 W (0.275 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: 6QP3 RC 1067 - RCA RCA Victor Co. Inc.; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 336.5 x 241.3 x 140 mm / 13.2 x 9.5 x 5.5 inch

• Notes

• Built-in loop antenna and telescoping rod antenna.

  Height and width in service data swapped.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original-techn. papers.

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.
