- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53706
-
- alternative name: RCA Manufacturing || Victor Talking Machine
RECONSTRUCTED LABEL

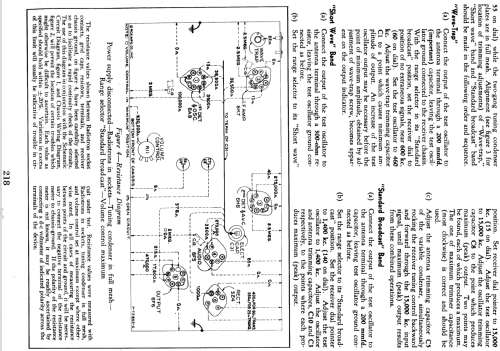

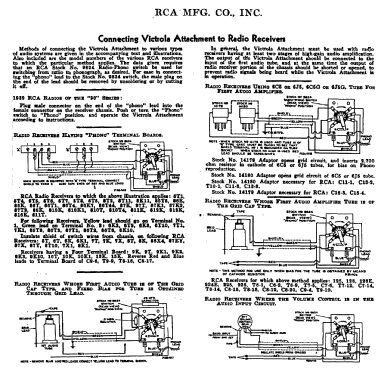

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / See Notes Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6T10 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 17 x 25 x 0 inch / 432 x 635 x 0 mm
- Notes
-
This model is similar to model 6T2 except for the cabinet (Vassos design), (Uses the same chassis also).
This model has 3 power supply ratings:
Rating A...105-125V, 50-60 Cycles
Rating B...105-125V, 25-60 Cycles
Rating C...100-130V; 140-160; 195-250; 40-60 Cycles.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Rider's Perpetual, Volume 8 = 1937 and before (Changes 8-4)
- Literature/Schematics (2)

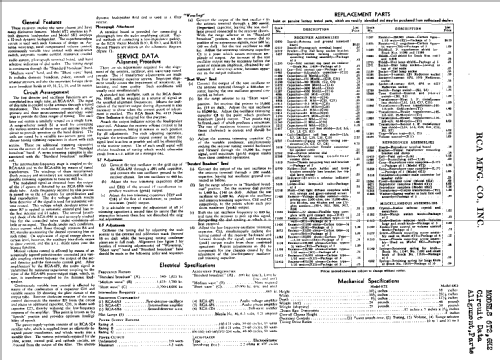

- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (3)
- Table Top Radios Vol. 1 Stein 98 (page 131.)
- Literature/Schematics (4)
- Cathedral & Tombstone Radios (page 213.)
