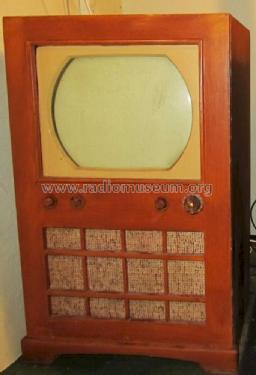

6T64 "Kingsbury" Ch= KCS47AT
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950/1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 230118
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6CB6 6J6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6CB6 6AU6 6CB6 6AL5 12AU7 12AU7 6SN7GT 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16GP4 or 16GP4A or 16GP4B or 16GP4C
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 3.5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6T64 "Kingsbury" Ch= KCS47AT - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 23.75 x 36.75 x 19.25 inch / 603 x 933 x 489 mm
- Notes
-
The RCA 6T64 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4, 16GP4A, 16GP4B or 16GP4C. Cabinet color is Mahogany, Walnut or Limed Oak.
- Net weight (2.2 lb = 1 kg)
- 107 lb (107 lb 0 oz) / 48.578 kg
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 367-400)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
