• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53726

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UX226 UX226 UX226 UY227 UX226 UX171A UX280

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Wooden case

• from Radiomuseum.org

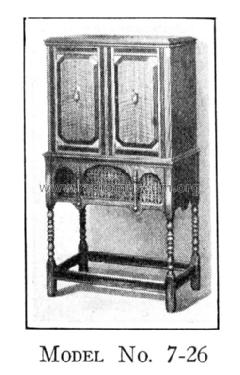

• Model: Electrola 7-26 - RCA RCA Victor Co. Inc.; New

• Notes

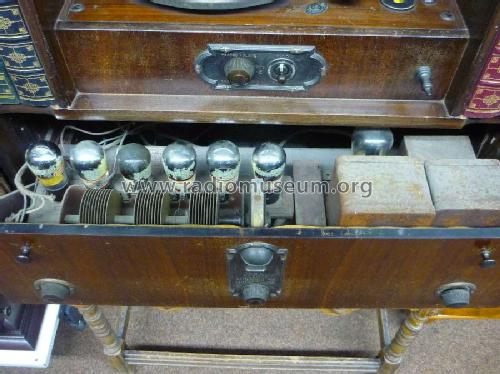

• Chassis of Radiola 18.

• Price in first year of sale
• 425.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in

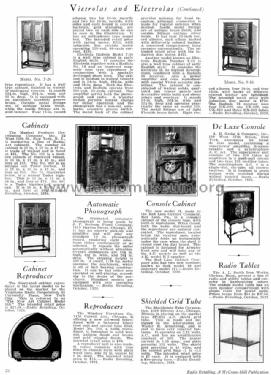

• Radio Manufacturers of the 1920's, Vol. 3
