7-EY-2HH "Deluxe 3" Ch= RS-155A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 81966
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Prospeto RCA Victor

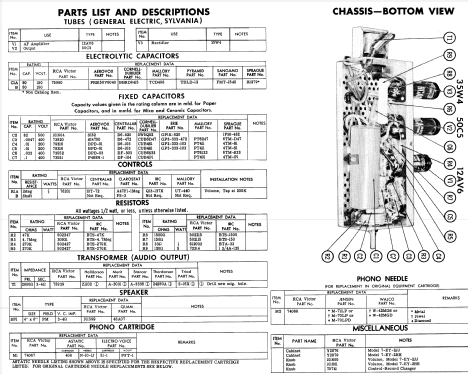

Aus Photofact Folder
RCA Deluxe 3 model 7-EY-2HH front view
RCA model 7-EY-2HH label
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 7-EY-2HH "Deluxe 3" Ch= RS-155A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11 x 6 x 11 inch / 279 x 152 x 279 mm
- Notes
-
Record Changer RP-190D-2.
2-tone green plastic case
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 355, Folder 8, Date 4-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
