7-HF-45 Ch= RS-159
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 83109
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 7-HF-45 Ch= RS-159 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

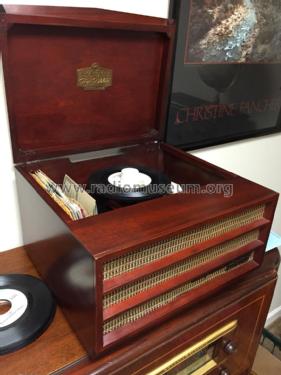

Push-pull output stage. The RCA Modell 7-HF-45 is an AC Operated 4 Tube Phono Amplifier with 45 RPM Record Changer.
The 7-HF-45 was available in Mahogany, Lift Rift Oak (Blonde) and Maple.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 4-57, Set 354, Folder 15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
