• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252434

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6CB6 6X8 6BA6 6AU6 6AU6 6AL5 6AV6 6AL7GT 6CG7 6CG7 6V6GT 6V6GT 5Y3GT 12AX7 12AU7 6CG7 6E5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; Hi-Fi-High End products

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 7HFR1 "The Mark lllD" - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 37 x 35 x 17 inch / 940 x 889 x 432 mm

• Notes

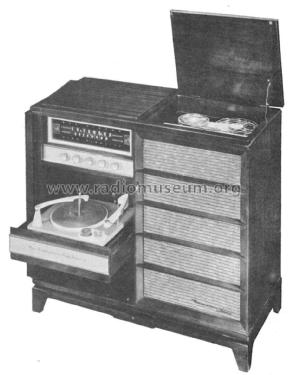

• RCA Victor model 7-HFR-1 is an AC operated FM-AM receiver with tape recorder and 4 speed automatic record changer.

• Mentioned in

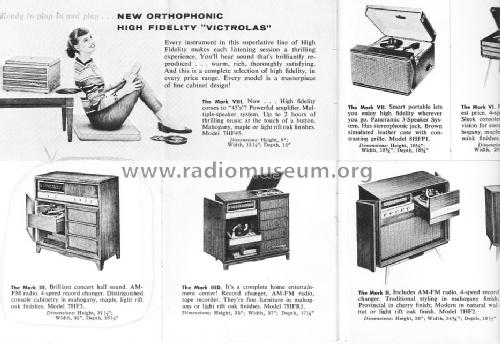

• -- Original prospect or advert

• Literature/Schematics (2)

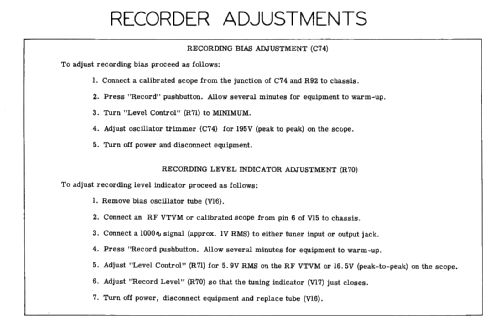

• Photofact Folder, Howard W. SAMS (Set 365 Folder 11 dated 7-57)

• Author
• Model page created by João-Afonso Santos. See "Data change" for further contributors.
