- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53802
-
- alternative name: RCA Manufacturing || Victor Talking Machine
RCA Print Advertise 1938
RCA Print Advertise 1938

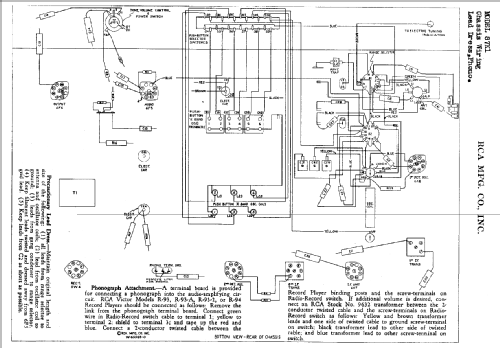

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 87K2 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with Push Buttons.
- Notes
- MODEL 87K2 is a console-type instrument identical to MODEL 87K1 except for cabinet styling. All Service Data and Replacement parts for Model 87K1 apply directly to model 87K2.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (2)
- RCA Victor Service Notes for 1937 (RCA Redbook 1937).
