8-BT-10K Ch= RC-1156A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83133
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 8-BT-10K Ch= RC-1156A - RCA RCA Victor Co. Inc.; New

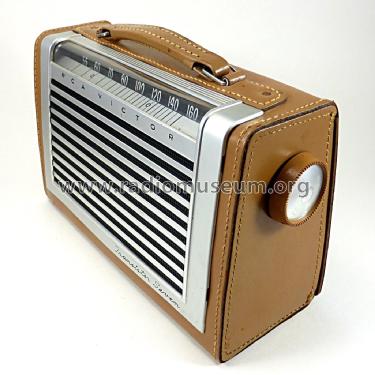

- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.5 x 7.5 x 4.25 inch / 267 x 191 x 108 mm
- Notes
-
This is RCA's second portable transistor radio, released the same year as RCA's first transistor radio, 7-BT-9J.

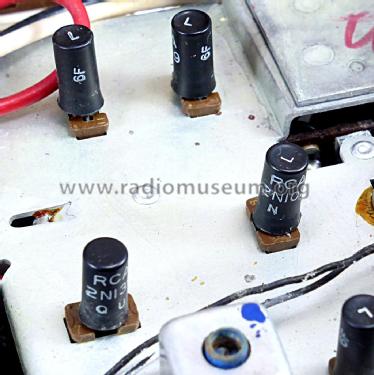

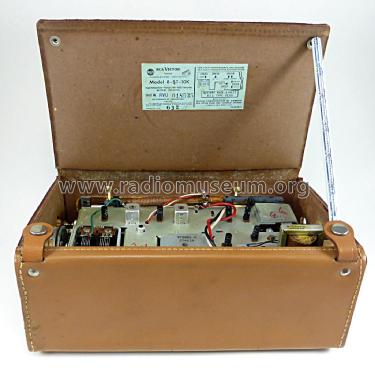

The transistors are easity detachable from their plug-in sockets. The reliability and longevity of the first commercial transistors were unknown so some of the early radios had sockets (like tube sockets) for easy replacement of the transistors.
Requires a special RCA battery pack, type VS301, which is 9-volt with a 3-volt tap.
Made in USA
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 350 Folder 13 date 3 - 57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
