• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 313675

• • alternative name: RCA Manufacturing || Victor Talking Machine

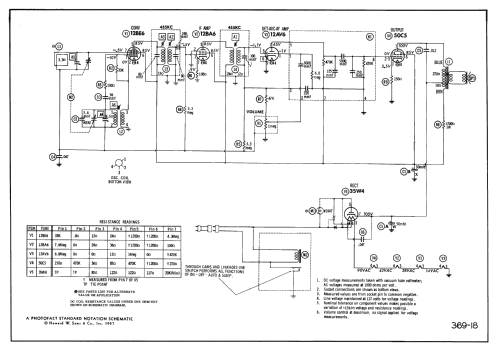

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

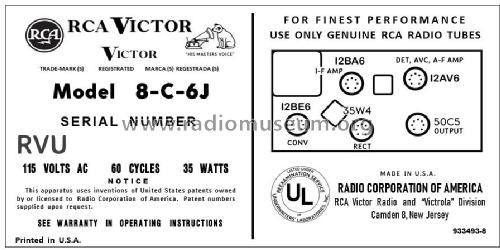

• Model: 8-C-6J Ch= RC-1179 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• RCA VICTOR model 8-C-6J is an AC operated AM Receiver with electric clock.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 369 Folder 18 dated 9-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
