8-EY-4FK Ch= RS-160
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 83111
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Picture from service manual.

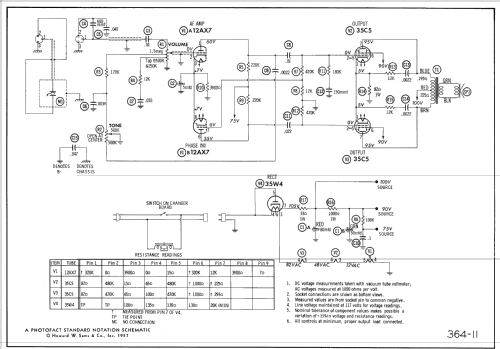

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8-EY-4FK Ch= RS-160 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA Victor model 8-EY-4FK is an AC operated phono amplifier with 45 RPM automatic record changer.Push-pull output stage.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 364 Folder 11 dated 7-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
