8-RF-13 Ch= RC-1168A

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138551

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture

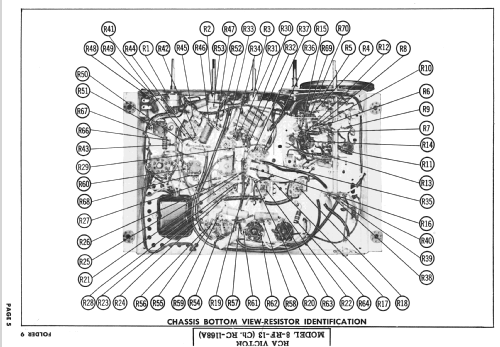

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6CB6 6X8 6BA6 6AU6 6AU6 6AL7GT 6AL5 6AV6 6CG7 6CG7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 8-RF-13 Ch= RC-1168A - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 28 x 18 x 11 inch / 711 x 457 x 279 mm

• Notes

• The RCA Modell 8-RF-13 is an AC Operated AM-FM Superheterodyne Receiver. Dimensions are for the radio and do not include the stand.

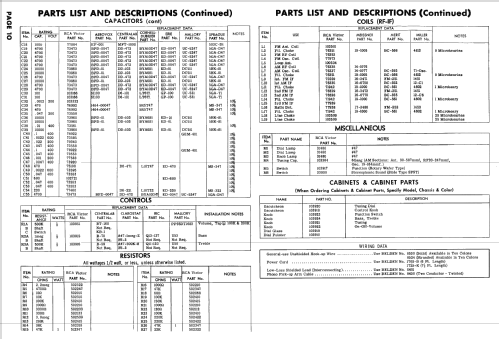

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 3-58, Set 390, Folder 9)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
