8PT7034 Ch= KCS100B

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 130316

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

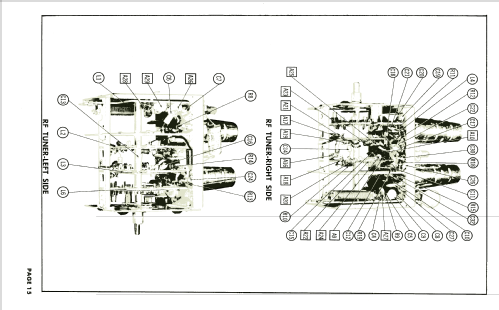

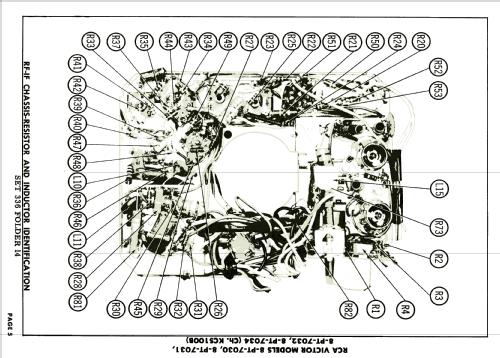

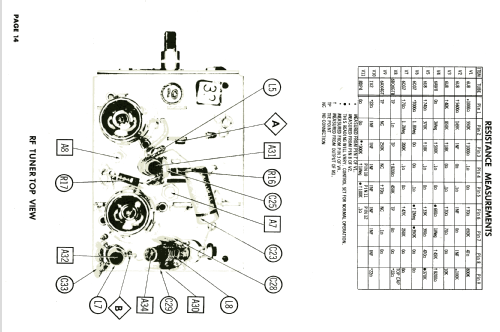

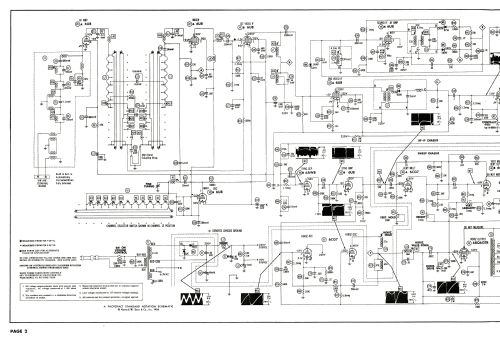

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6U8 6U8 6U8 6AW8 6U8 6CG7 6CG7 6BQ6GTB 6AX4GT 1V2 8DP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: 8PT7034 Ch= KCS100B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

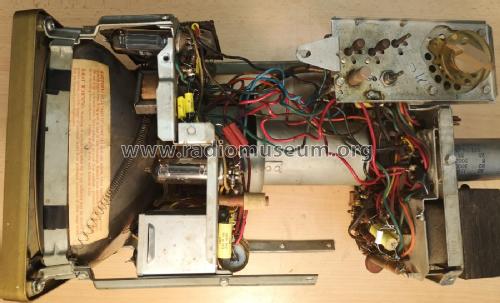

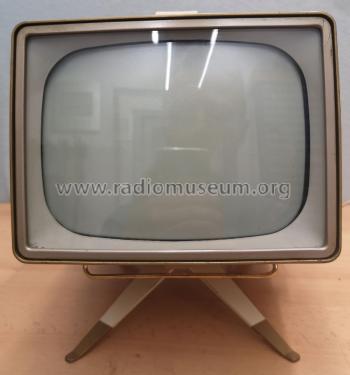

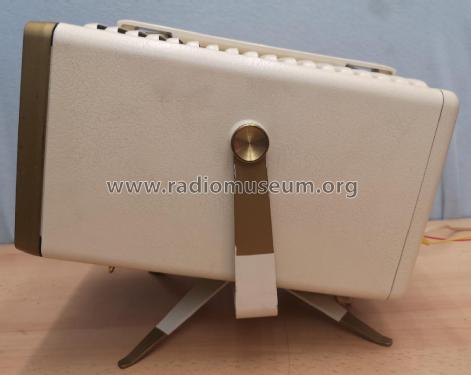

• RCA model 8PT7034 is a 8" portable TV with 12 channel US Band I/III Tuner, ivory metal cabinet, built-in stand & 2 telescopic antennas, VHF- Tuner KRK55A, chassis KCS100B, 90 watts power consumption and picture tube 8DP4.

• Price in first year of sale
• 125.00 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 336 Folder 14 date 11 - 56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 322 Folder 16-S)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
