• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53863

• • alternative name: RCA Manufacturing || Victor Talking Machine

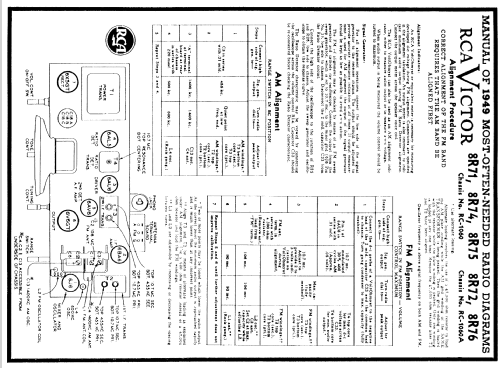

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6J6 6BA6 6AU6 6AL5 6AV6 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 8R75 Ch= RC-1060A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Color=Walnut

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949
