8TR2 Ch= RS-156F,H & TR-2A-1,-2
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 197672
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: 8TR2 Ch= RS-156F,H & TR-2A-1,-2 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.1 x 14.7 x 9.3 inch / 460 x 373 x 236 mm
- Notes
-
RCA Victor models 8-TR-2 and 8-TR-3 are push-button tape recorders designed to record and reproduce sound using 1/4" magnetic-coated tape.The recorders are dual-track mechanisms, in which one-half of the tape width is used during recording.
- Net weight (2.2 lb = 1 kg)
- 34 lb 9 oz (34.563 lb) / 15.691 kg
- Literature/Schematics (1)

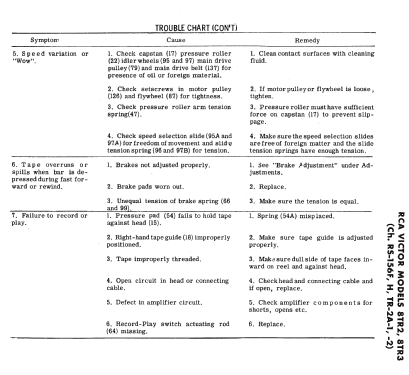

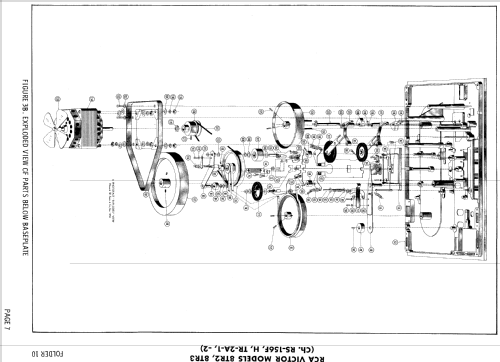

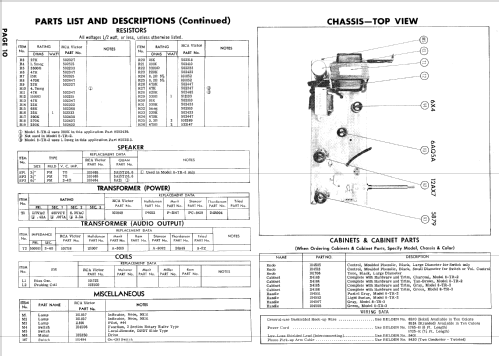

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 397, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
