8V151 Ch= RS-123D + RK-121C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53877
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Beitman

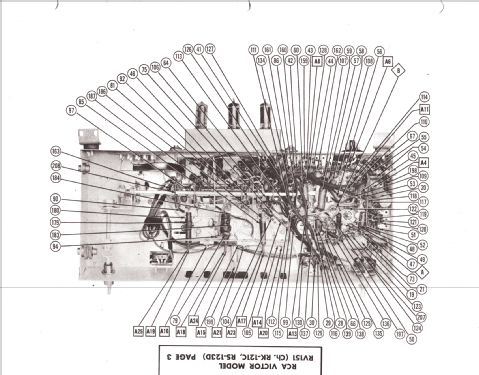

SAMS Photofact Volume 7 Folder 499-13
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8V151 Ch= RS-123D + RK-121C - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1024 x 925 x 439 mm / 40.3 x 36.4 x 17.3 inch
- Notes
- RS-123D Power Supply u.AF Chassis RK-121C RF-IF Chassis
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 09, 1949
- Literature/Schematics (2)
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Volume 7 Folder 499-17 05/1949)
