96T6 RC-399A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 157725
-
- alternative name: RCA Manufacturing || Victor Talking Machine

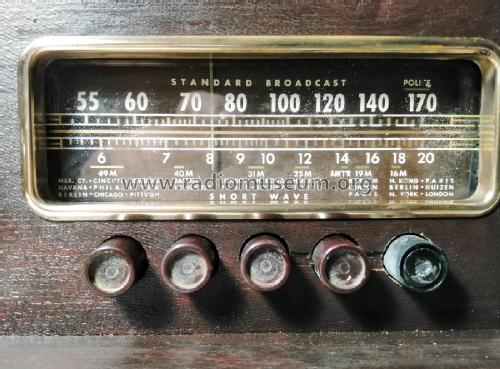

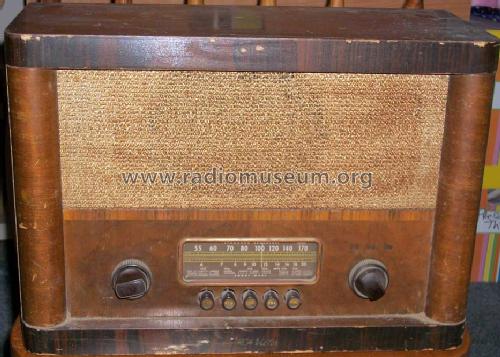

Not the original grill cloth.

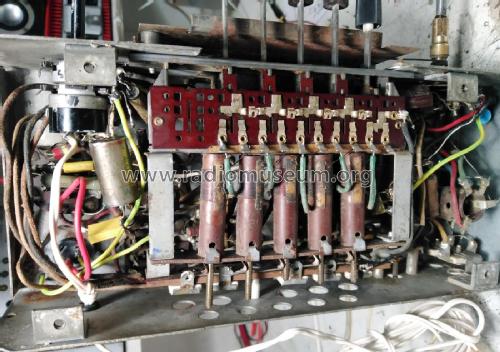

Chassis with pushbuttons in place.
Chassis with pushbuttons removed.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 96T6 RC-399A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 16 x 11 x 7 inch / 406 x 279 x 178 mm
- Notes
- Ballast Resistor BK49B
- Net weight (2.2 lb = 1 kg)
- 14 lb 0 oz (14 lb) / 6.356 kg
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 02, 1939
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
