97K2 Ch=RC-351K
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54026
-
- alternative name: RCA Manufacturing || Victor Talking Machine

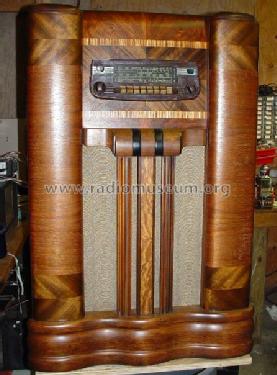

Courtesy Clyde Bell, Reston, VA
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 97K2 Ch=RC-351K - RCA RCA Victor Co. Inc.; New
- Shape

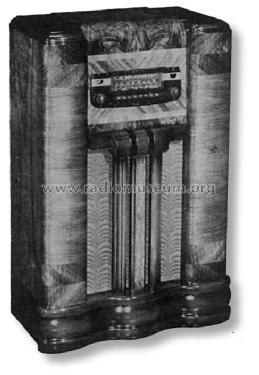

- Console with Push Buttons.
- Dimensions (WHD)
- 27.3 x 41 x 14.5 inch / 693 x 1041 x 368 mm
- Notes
- 2 pilot lamps Mazda 47, 6.3 v.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- RCA Victor Service Notes for 1938
- Literature/Schematics (2)
- Pre-War Consoles
- Other Models
-
Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model 97K2 is part of the collections of the following members.
Forum contributions about this model: RCA RCA Victor Co.: 97K2 Ch=RC-351K
Threads: 1 | Posts: 2
My radio has a smaller faceplate and a single vertical bar over the speaker grill. It says RC 351 on the back of the chassis and 8020A stamped with ink on the chassis. Does anyone know the model number? I added an imagae to the RC 351K file of my radio.
William Davis, 30.Jan.16
