Electrola 9-56 Victor Chinese Chippendale
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53973
-
- alternative name: RCA Manufacturing || Victor Talking Machine

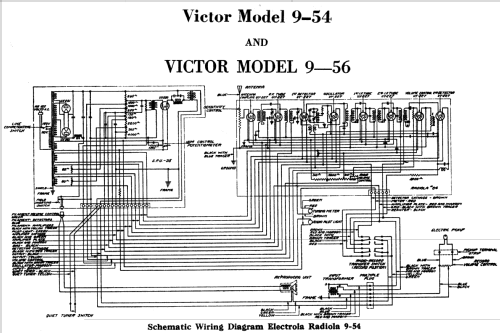

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Electrola 9-56 Victor [Chinese Chippendale] - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
- Chinese Chippendale version of the 9-54 model.
- Price in first year of sale
- 1,750.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3 (p.54)
- Literature/Schematics (1)

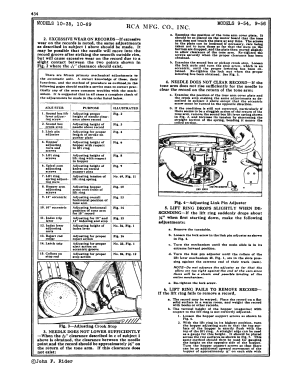

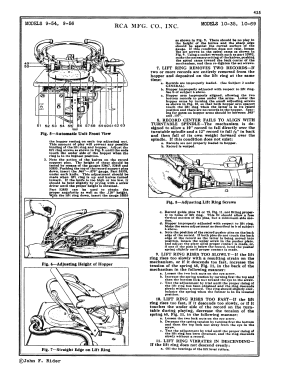

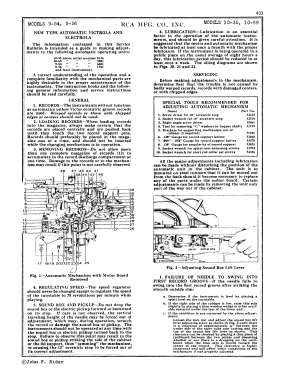

- Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (see 9-54)
