Transistor Six 9-BT-9H Ch= RC-1164A or RC-1164B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84548
-
- alternative name: RCA Manufacturing || Victor Talking Machine

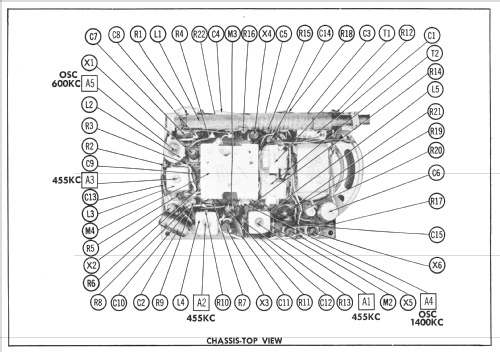

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor Six 9-BT-9H Ch= RC-1164A or RC-1164B - RCA RCA Victor Co. Inc.; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.875 x 3.5 x 1.5 inch / 149 x 89 x 38 mm
- Notes
-
RCA Victor model 9-BT-9H is a battery operated portable AM receiver.
The following models are identical except for cabinet color.
Model Cabinet Color 9-BT-9E Antique white 9-BT-9H Green 9-BT-9J Gray
- Net weight (2.2 lb = 1 kg)
- 0.380 kg / 0 lb 13.4 oz (0.837 lb)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 219)
- Literature/Schematics (1)

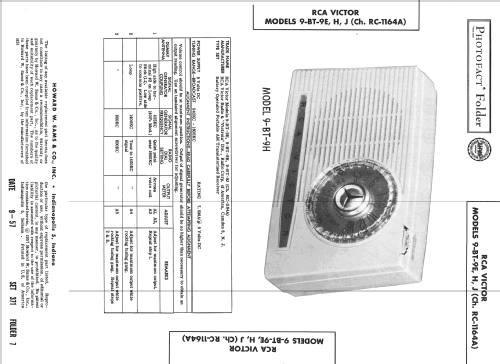

- Photofact Folder, Howard W. SAMS (Set 371 Folder 7 dated 9-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 389 Production Changes Bulletin 202 dated 2-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
