• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84614

• • alternative name: RCA Manufacturing || Victor Talking Machine

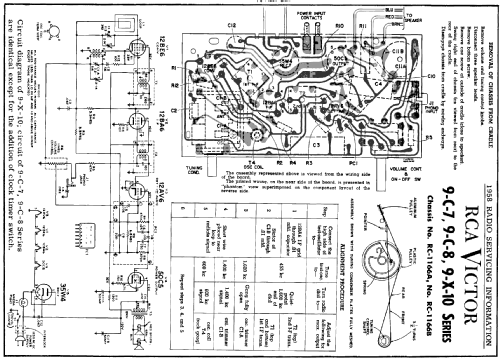

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Power out
• 1 W (1.3 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 9-C-8 Ch= RC-1166A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 6 x 6 inch / 305 x 152 x 152 mm

• Notes

• The models break down as follows:

  9-C-8J = 2 Tone Gray
  9-C-8FE = Pink and White
  9-C-8ME = Maple and White

  Has an appliance outlet rated at 1100 watts

  Speaker = 3.2 ohms

  Has a phono plug on side.

• Net weight (2.2 lb = 1 kg)
• 6 lb (6 lb 0 oz) / 2.724 kg

• Source of data
• - - Manufacturers Literature

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
