9-INT-2 Ch= RC-1172

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 158076
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

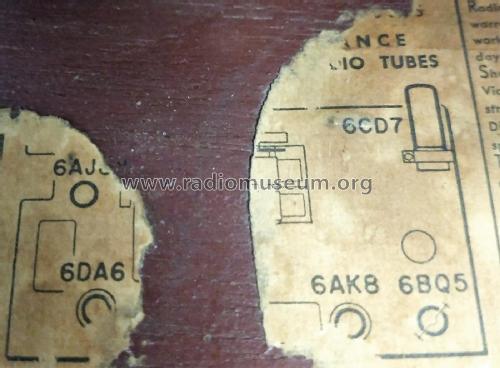

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 9-INT-2 Ch= RC-1172 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 26 x 33 x 16.25 inch / 660 x 838 x 413 mm
  • Notes
  • RCA International 9-INT-2 High Fidelity;
    Magic Eye tuning indicator tube, bass & treble control, selectivity control: sharp-broad, directional front controlled rotating ferrite rod antenna,
    Coverage: broadcast 510 - 1650 kc,
    SW: 2.2 - 18.5 mc in two bands: 2.2 - 6.5 mc and 6 - 18.5 mc.
    FM: 88 - 108 mc,
    55 watts power consumption, four antenna screw terminals, phono & tape in, ext. speaker jack,
    The RCA models "9INT1" (table model) and "9INT2" (console) with the same chassis were made in West Germany by Graetz for RCA Victor Radio and "Victrola" Division Camden 8, New Jersey.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
