ACR136 -C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81726
-
- alternative name: RCA Manufacturing || Victor Talking Machine

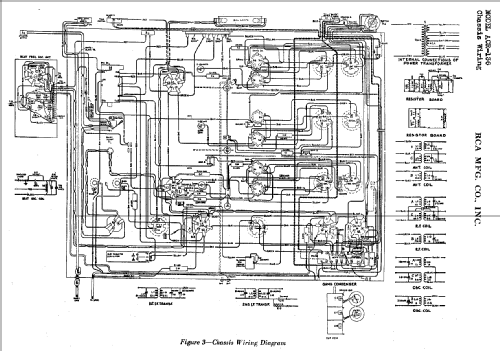

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 100-130; 195-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1.75 W (unknown quality)
- from Radiomuseum.org
- Model: ACR136 [-C] - RCA RCA Victor Co. Inc.; New
- Notes
- BFO for CW reception.
- Source of data
- RCA Victor Service Notes "Red Book" Series
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
