Westinghouse Aeriola Sr (RF) wooden panel

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1922

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54134

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• WD11

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material

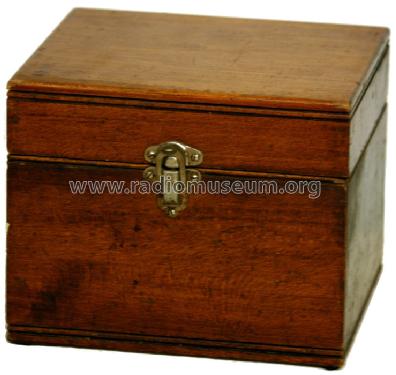

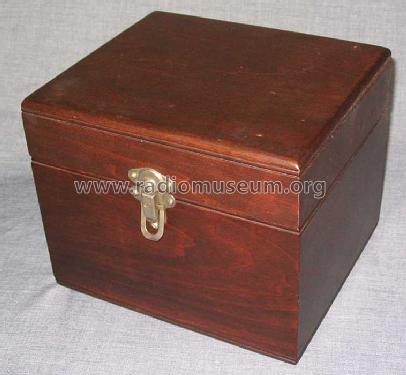

• Wooden case

• from Radiomuseum.org
• Model: Westinghouse Aeriola Sr [wooden panel] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 8.5 x 7 x 7.5 inch / 216 x 178 x 191 mm

• Notes

• The "Radio Collector's Guide" lists for 1922 as made by "RCA Victor Corp. of America". Their first Radios were made in 1921: RA/DA/RC. For 1922 the book lists 7 models.

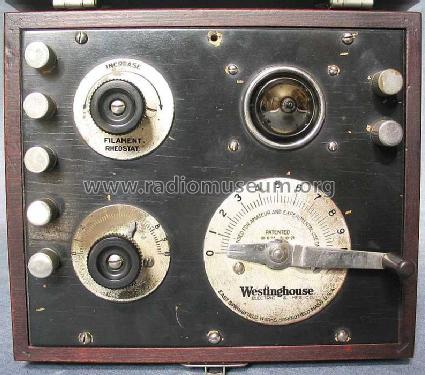

  Black painted wooden panel with silver color dials.

• Price in first year of sale
• 65.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 3
