• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1925

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 54144

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UX210 UX216B

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AP-935 Power Amp. - RCA RCA Victor Co. Inc.; New

• Shape
• Chassis only or for «building in»

• External source of data
• Ernst Erb

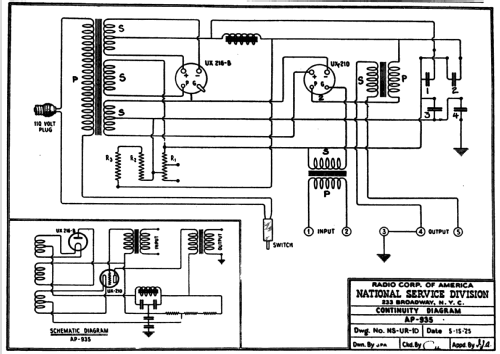

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
