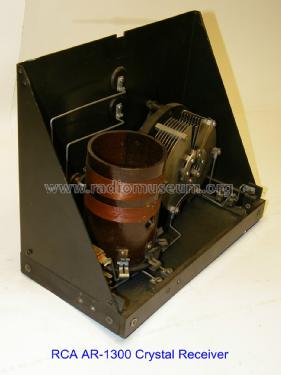

AR-1300 Radio Receiver (Crystal / Tuner) green, silver dials

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1922

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 54155

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector; Reaction

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AR-1300 Radio Receiver [green, silver dials] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Made for RCA by General Electric. Could be used as a Crystal receiver or as a regenerative tuner in conjunction with AA1400 Detector Amplifier.
  Painted green with silver plated dials.

• Price in first year of sale
• 50.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 3

• Literature/Schematics (2)
• Radio Broadcast, June 1922, page 169

• Literature/Schematics (3)

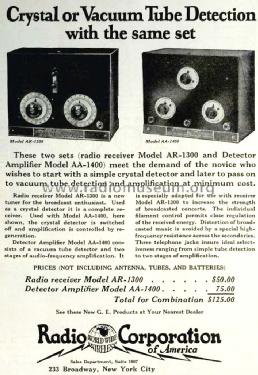

• RCA catalog 1922

• Literature/Schematics (4)
• Radio Digest Illustrated, 1922 Oct. 14, p. 9
