Beat Frequency Oscillator (Schwebungssummer) 154
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1938
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 196077
-
- alternative name: RCA Manufacturing || Victor Talking Machine

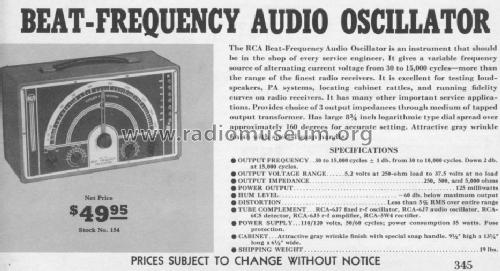

Ad taken from RCA Victor Service Notes 1940
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Beat Frequency Oscillator 154 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.75 x 9.25 x 6.5 inch / 349 x 235 x 165 mm
- Notes
- Frequency Range: 30 to 15,000 Cycles.
- Net weight (2.2 lb = 1 kg)
- 15 lb (15 lb 0 oz) / 6.810 kg
- Price in first year of sale
- 50.00 USD
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
