Victor RAE-84 Bi-Acoustic

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54680
    • alternative name: RCA Manufacturing || Victor Talking Machine

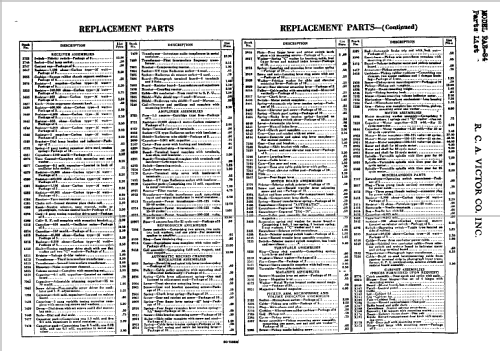

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Other Recorder/Player
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 20 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Victor RAE-84 Bi-Acoustic - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 28.2 x 43 x 14 inch / 716 x 1092 x 356 mm
  • Notes
  • Disc recording and changing phonograph (home recording system).
    6 legged stretcher base.
  • Net weight (2.2 lb = 1 kg)
  • 76 kg / 167 lb 6.4 oz (167.401 lb)
  • Price in first year of sale
  • 310.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
