• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54176

• • alternative name: RCA Manufacturing || Victor Talking Machine

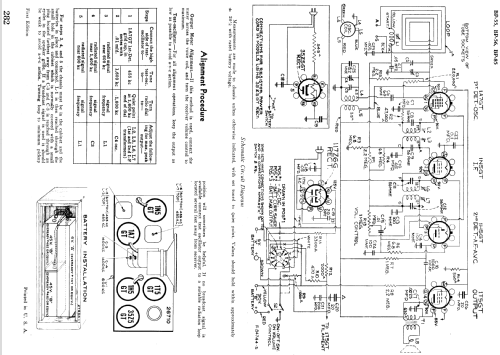

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 1T5GT 117Z6G or 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.12 W (unknown quality)

• from Radiomuseum.org

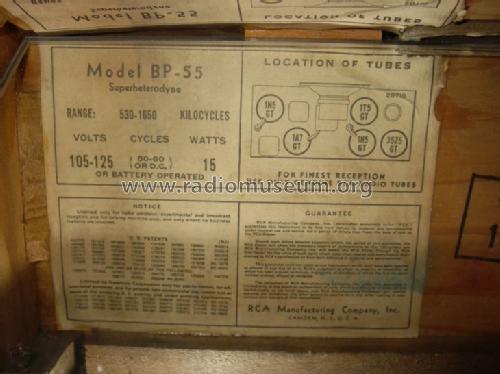

• Model: BP-55 Ch= RC-455 - RCA RCA Victor Co. Inc.; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13 x 10.75 x 5 inch / 330 x 273 x 127 mm

• Notes
• AC operation: 110-125V, 50-60 Cycles
  DC operation: 6 & 2 x 45V

• Price in first year of sale
• 29.95 USD

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 02, 1939

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Other Models

• Here you find 5132 models, 3235 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
