• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54197

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6K7 6L7 6J7 6K7 6E5 6K7 6H6 6C5 6C5 6C5 6F6 6F6 5Z4

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C13-3 - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Notes
• 140 to 60000 kc in 5 ranges.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Literature/Schematics (1)

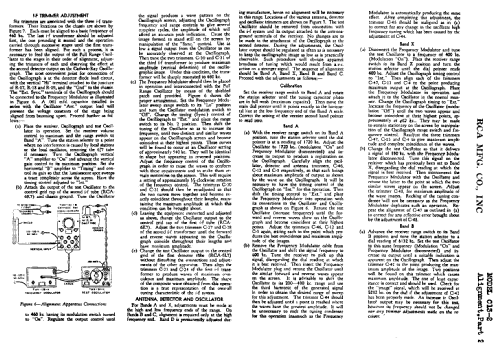

• RCA Victor Service Notes "Red Book" Series (Volume 1;1923-1937; pages 230B to 235B)

• Other Models

• Here you find 5132 models, 3235 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
