- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54204
-
- alternative name: RCA Manufacturing || Victor Talking Machine

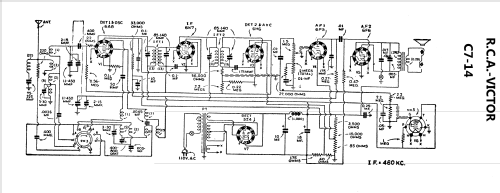

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C7-14 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 26.5 x 40.8 x 13.4 inch / 673 x 1036 x 340 mm
- Notes
- There are 3 different power supply ratings for this model: Rating A....105-125V, 50-60 cycles Rating B....105-125V, 25-60 cycles Rating C....100-130;140-160;195-250V, 40-60 cycles
- Net weight (2.2 lb = 1 kg)
- 43 lb (43 lb 0 oz) / 19.522 kg
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
