Color Bar/Dot/Crosshatch Gen. WR-64-A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 137151
-
- alternative name: RCA Manufacturing || Victor Talking Machine

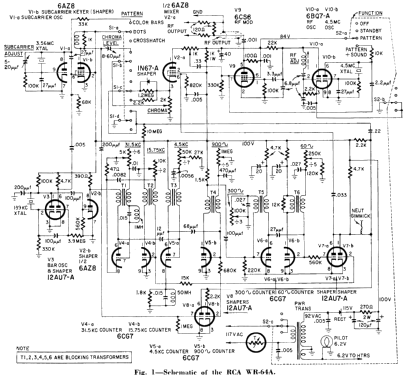

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Color Bar/Dot/Crosshatch Gen. WR-64-A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.5 x 10 x 8 inch / 343 x 254 x 203 mm
- Notes
- RCA WR-64A, Color Bar/Dot/Crosshatch Generator;
- Price in first year of sale
- 190.00 $
- Source of data

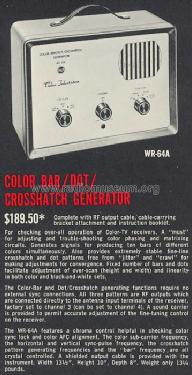

- -- Original prospect or advert
- Mentioned in
- RCA Test Equipment and Accessories ~1965
- Author
- Model page created by a member from A. See "Data change" for further contributors.
