• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1967 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 327647

• • alternative name: RCA Manufacturing || Victor Talking Machine

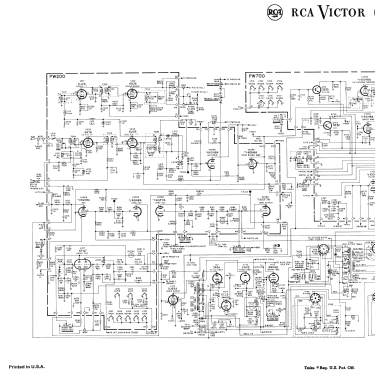

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz; 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Color Television Chassis CTC31 - RCA RCA Victor Co. Inc.; New

• Shape
• Chassis only or for «building in»

• Notes

• Color television chassis for US FCC standard VHF and UHF channels.  Uses CRT 22JP22 or 25XP22.

• Author
• Model page created by David Erali. See "Data change" for further contributors.
