Color Television Receiver 21-CT-7835 Ch= CTC5B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272450
-
- alternative name: RCA Manufacturing || Victor Talking Machine

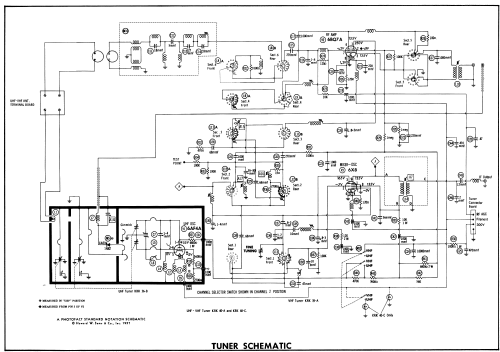

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6BQ7A 6X8 6DE6 6DE6 6CB6 6AW8 12BY7A 6U8 6AU6 6T8 6AQ5 6CG7 6AQ5 6CG7 6CB5A 6AU4GTA 1V2 3A3 6BK4 6AW8 6AN8 6CB6 12AT7 12AT7 5U4GB 5U4GB 21AXP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Color Television Receiver 21-CT-7835 Ch= CTC5B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The RCA Victor 21-CT-7835 is a 21" NTSC Color TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis CTC-5B and picture tube 21AXP22A.
- Mentioned in

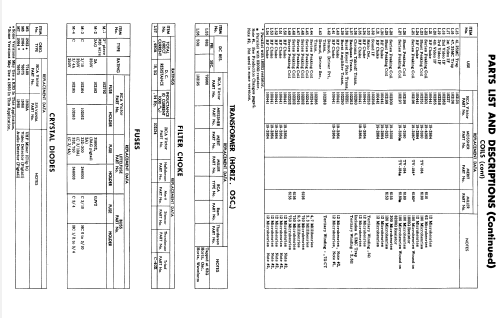

- Photofact Folder, Howard W. SAMS (Set 353, Folder 11, Date 4-57)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
