• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1933

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 54216

• • alternative name: RCA Manufacturing || Victor Talking Machine

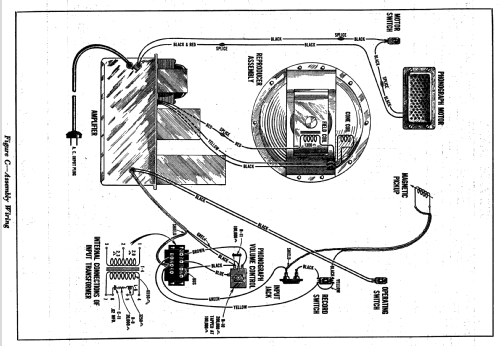

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 230 247 247 280

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: CRD-9 Disc Recorder / Player - RCA RCA Victor Co. Inc.; New

• Notes
• The CRD-9 is an electric phonograph used for store demonstration purposes. This version of the CRD-9 is the AC version (There is also a CRD-9 DC version).

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series
