• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1960 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 136622

• • alternative name: RCA Manufacturing || Victor Talking Machine

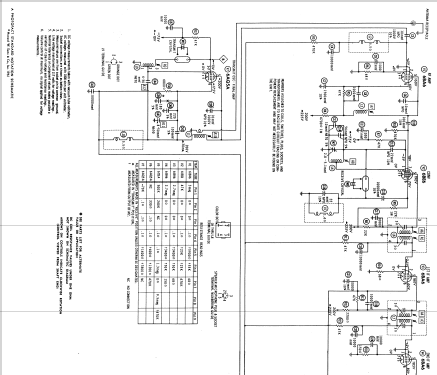

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 6BE6 6BA6 6BA6 6T8A 6AQ5A 6AQ5A

• Main principle
• Superheterodyne (common); ZF/IF 1650 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110 - 120 AC / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: CRM-P2B-5 Ch= 555529 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Sams photofact, set 538, folder 10, date 7-61, features the RCA Model CRM-P2B-5 with different chassis. The difference is the power supply.

• Literature/Schematics (1)

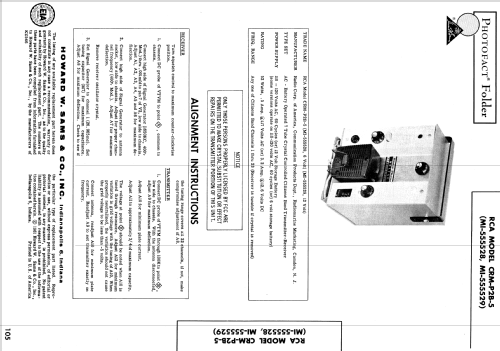

• Photofact Folder, Howard W. SAMS (Set 538 folder 10 date 7-61)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
