• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1960 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 136613

• • alternative name: RCA Manufacturing || Victor Talking Machine

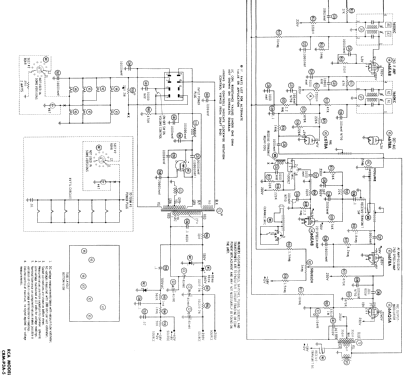

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 6BE6 6BA6 6EA8 6T8A 6AQ5A 6AW8A

• Main principle
• Transceiver; ZF/IF 1650 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110-120; 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Radio Phone - Mark VII CRM-P3A-5 - RCA RCA Victor Co. Inc.; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• AC or Battery operated citizens band transmitter receiver. Any of 4 CB Channels 1 thru 23

• Literature/Schematics (1)

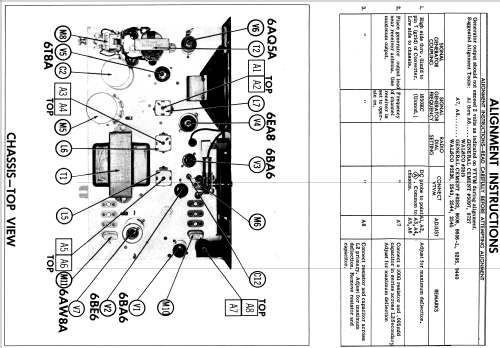

• Photofact Folder, Howard W. SAMS (Set 536 folder 9 date 6-61)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
