• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1941

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 89112

• • alternative name: RCA Manufacturing || Victor Talking Machine

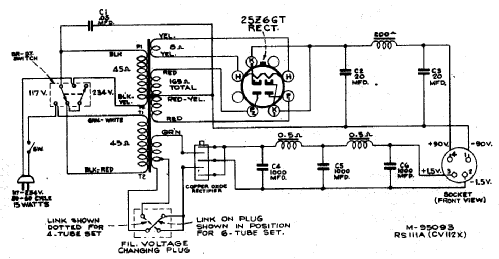

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25Z6GT

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125/210-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: CV-112X Ch= RS-111A - RCA RCA Victor Co. Inc.; New

• Notes
• This electrifier may be used to operate RCA models QB55 or QB55X from a 105-125/210-250V AC supply. 50-60 cycle, 15 watts.

• Literature/Schematics (1)
• RCA Victor Instruments Service Notes 1941-1942

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
