D9-19 Late
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54237
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 ; 125 ; 150 ; 210 ; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

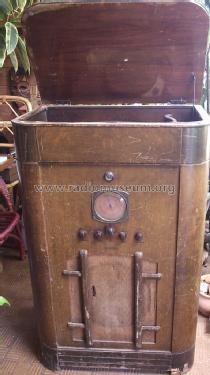

- Model: D9-19 [Late] - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
The C9-19 ha a low frequency tone control and metal rectifier. There is an earlier model and probably even more models with this chassis.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Pre-War Consoles
- Other Models
-
Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Forum contributions about this model: RCA RCA Victor Co.: D9-19
Threads: 2 | Posts: 4
Another piece of information that might help to date this radio is the following printing on the front, just below the knobs:
"Made in the United States of America for the Gramophone Company Limited, Hayes, Middlesex, England"
This would explain the step-down transformer.
Regards
Nigel
Nigel Hulse, 28.Jul.13
I have uploaded a lot of photos of this radiogram hoping that it can be identified.
I mistakenly uploaded them to the D9-19 (late), but am sure that it is an earlier model, as it uses a 5Z4 as the rectifier - not a metal rectifier.
If it is , in fact, an earlier model, could the photo Administrator please move the photos to the correct model?
Many thanks
Nigel Hulse
Nigel Hulse, 27.Jul.13
