• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1931 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 195417

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

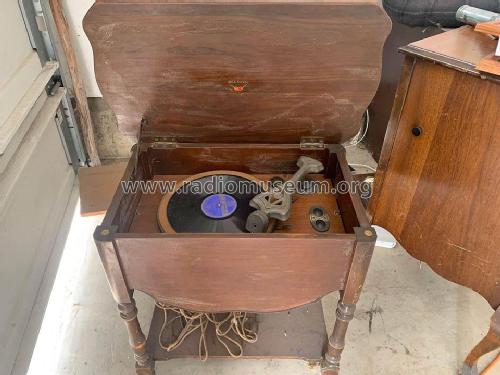

• Model: End Table Electrola T-5 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 26 x 24.5 x 12.5 inch / 660 x 622 x 318 mm

• Notes
• This is a phonograph and is designed to be connected to an RCA receiver such as model R-14, R-15, Radiola 42 or Radiola 48.

• Net weight (2.2 lb = 1 kg)
• 42 lb (42 lb 0 oz) / 19.068 kg

• Source of data
• RCA Victor Service Notes "Red Book" Series

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
