Field Communication Receiver AR-80
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1941 ?
- Category
- Military Receiver
- Radiomuseum.org ID
- 341243
-
- alternative name: RCA Manufacturing || Victor Talking Machine
RCA AR-80 Front View (collection of W3TA)
RCA AR-80 Inside View (collection of W3TA)

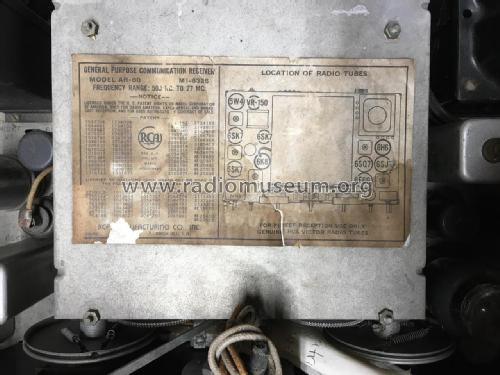

RCA AR-80 Label (collection of W3TA)
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Power out
- 2.5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Field Communication Receiver AR-80 - RCA RCA Victor Co. Inc.; New
- Shape
- Rack
- Dimensions (WHD)
- 19 x 13 x 14 inch / 483 x 330 x 356 mm
- Notes
-
The Model AR-80 is a portable communication receiver similar to the AR-77.
The receiver is housed in an aluminum case and is enclosed by a canvas cover, and may be carried by one or two people.
- Net weight (2.2 lb = 1 kg)
- 61 lb 0 oz (61 lb) / 27.694 kg
- Literature/Schematics (1)
- -- Original-techn. papers. (Field Communication Receiver Model AR-80 MI-8325)
- Author
- Model page created by Gary Berg. See "Data change" for further contributors.
