GF-611W "Bailey" Ch= CTC16A

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 243651
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 27
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2.5 W (max.)
  • from Radiomuseum.org
  • Model: GF-611W "Bailey" Ch= CTC16A - RCA RCA Victor Co. Inc.; New
  • Notes

  • The RCA GF-611W is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC16A, VHF tuner KRK118D, UHF tuner KRK120JP and picture tube 21FJP22. Uses Qty(1) PM 4" speaker. Cabinet is Walnut.



  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)

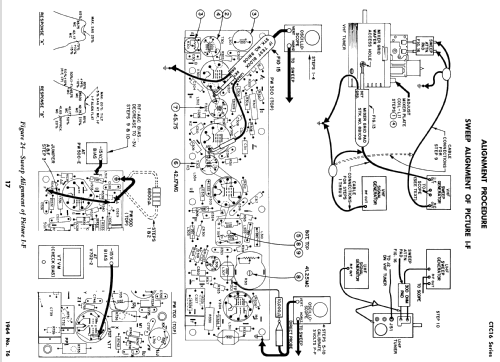

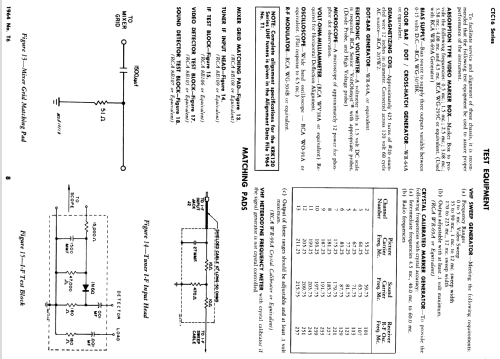

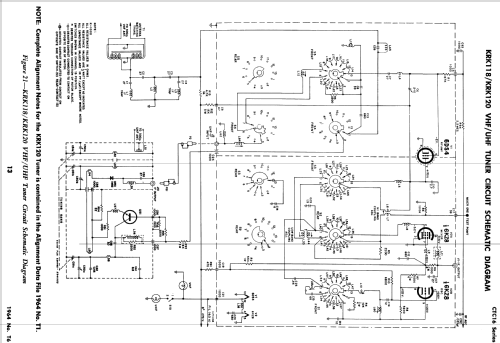

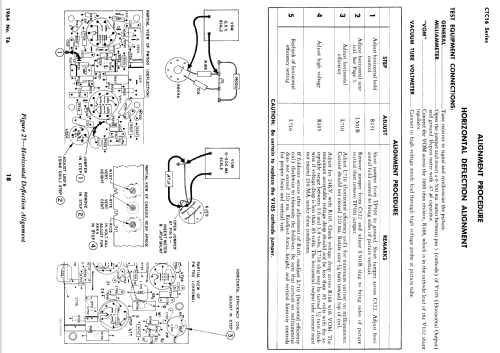

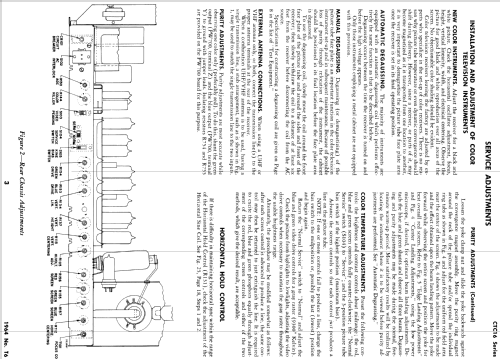

  • - - Manufacturers Literature (RCA Datasheet 1964 No. T6)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
