GF-631WR "Fielding" Ch= CTC16F
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1964/1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 243662
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6KZ8 6DS4 6JH6 6GM6 6EJ7 6LF8 12BY7 6EW6 6HZ6 6AQ5A 6GF7 6FQ7 6KA8 6JE6 6DW4 6BK4A 3A3 1V2 6EW6 6GH8A 6JU8 6GH8A 6GY6 6GY6 6GU7 6GU7 21FJP22
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (max.)
- from Radiomuseum.org
- Model: GF-631WR "Fielding" Ch= CTC16F - RCA RCA Victor Co. Inc.; New
- Notes
-
The RCA GF-631WR is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC16F, VHF tuner KRK118E, UHF tuner KRK120JP and picture tube 21FJP22. Uses Qty(1) PM Elliptical 4" x 6" speaker. Cabinet is Walnut.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)

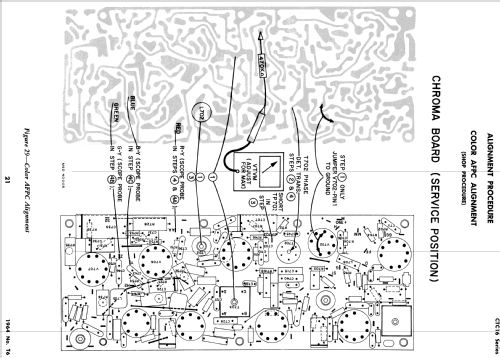

- - - Manufacturers Literature (RCA Datasheet 1964 No. T6)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
