GF-701W "Alborg" Ch= CTC16E

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 243669

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture

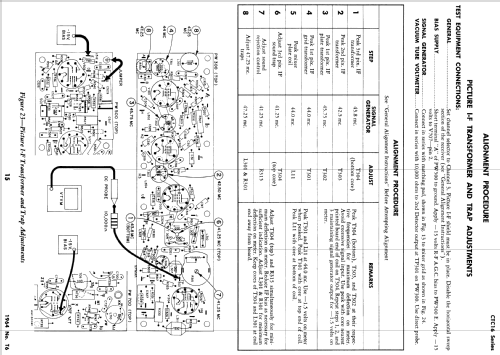

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

• Valves / Tubes
• 6KZ8 6DS4 6JH6 6GM6 6EJ7 6LF8 12BY7 6EW6 6HZ6 6AQ5A 6GF7 6FQ7 6KA8 6JE6 6DW4 6BK4A 3A3 1V2 6EW6 6GH8A 6JU8 6GH8A 6GY6 6GY6 6GU7 6GU7 21FJP22

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (max.)

• from Radiomuseum.org
• Model: GF-701W "Alborg" Ch= CTC16E - RCA RCA Victor Co. Inc.; New

• Notes

• The RCA GF-701W is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC16E, VHF tuner KRK118D, UHF tuner KRK120JP and picture tube 21FJP22. Uses Qty(1) PM Elliptical 4" x 6" speaker. Cabinet is Walnut.



• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• - - Manufacturers Literature (RCA Datasheet 1964 No. T6)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
