JA-1 RC-1199D

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 333767
    • alternative name: RCA Manufacturing || Victor Talking Machine

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 4 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: JA-1 RC-1199D - RCA RCA Victor Co. Inc.; New
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 65 x 103 x 32 mm / 2.6 x 4.1 x 1.3 inch
  • Notes

  • RCA Victor 6 transistor AM radio.  US civil defense marks on station dial.  Operates with special VS-149 4-volt battery (or modern equivalent).

    Also found with "A" or "B" suffix such as JA-1A or JA-1B.

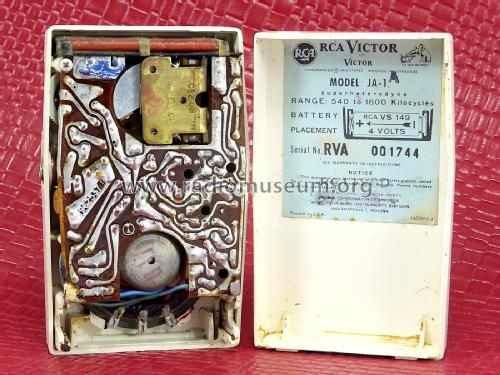

    The JA-1 model is nearly identical to the RCA Victor 3-H-10 radio.  It shares the same printed circuit board design, 962537-1, of many early RCA Victor transistor radios.  This JA model name is a deviation to the 1-, 2-, 3- and 4- naming system of RCA for transistor radios of the same era.

    RCA Victor RC-1199 and RC-1199A appear in 1961 Beitmans schematics.  The RC-1199D appears in the 1963 schematics.



  • Author
  • Model page created by Ray Albright. See "Data change" for further contributors.
