- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 54325
-
- alternative name: RCA Manufacturing || Victor Talking Machine

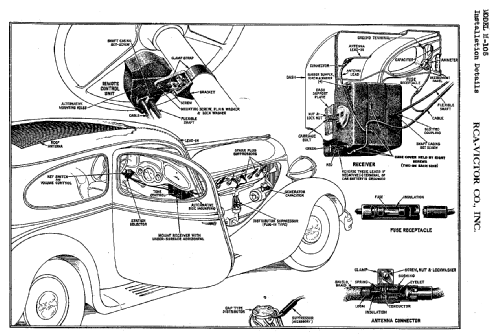

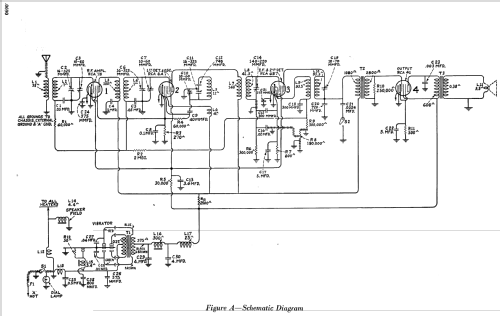

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1.35 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: M105 - RCA RCA Victor Co. Inc.; New
- Shape
- Chassis only or for «building in»
- Notes
- Synchron.Vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before

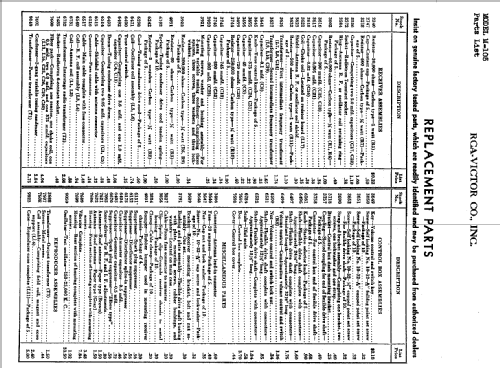

- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
- Other Models
-
Here you find 5132 models, 3235 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
