9T256 KCS38C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116923
-
- alternative name: RCA Manufacturing || Victor Talking Machine

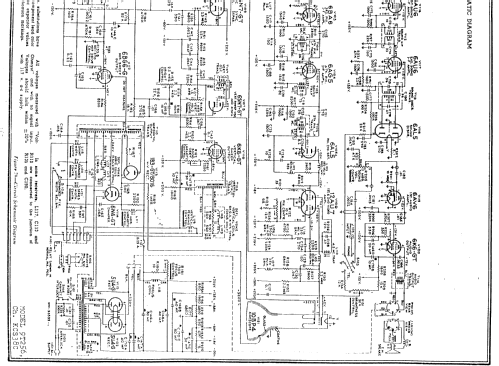

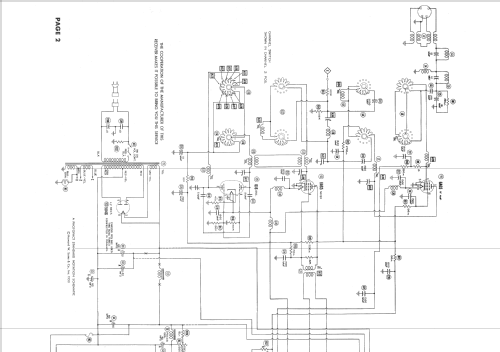

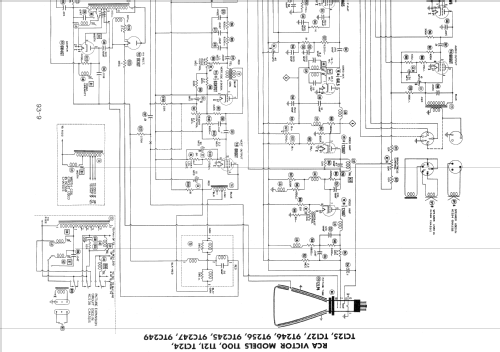

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Main principle
- Superhet with RF-stage; 2 AF stage(s); none
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: 9T256 KCS38C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 390 x 530 mm / 21.7 x 15.4 x 20.9 inch
- Notes
- 10" round pic. tube TV with 12 channel VHF tuner. Some tubes are repeatedly present.
- Price in first year of sale
- 199.00 $
- Mentioned in
- Beitman TV 5-123
- Literature/Schematics (1)
- Sams 93-9
- Author
- Model page created by Michael Niermann. See "Data change" for further contributors.
- Other Models
-
Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model 9T256 is part of the collections of the following members.
